Getting Started

Read time: 39 minutes (9925 words)

Are you ready to code? We will be building a fair amount of code in this class, and of course, I want you to write good code. That does not just mean that your code works! It it also means that your code is “clean”, meaning it follows common style conventions, is well written and documented.

Note

The code you write reflects how much you care about the craft of programming. Every student in this class is on a path to become a professional who can craft solutions to complex problems, then get the computer to do the messy work for you.

We will be using C++ in this course. Some of you may have already studied C++, but others have never seen this language. No matter! We will start off with a simple problem, designed to show you how to do your work.

I can hear some of you muttering that you know how to write code, you just fire up some IDE and type away.

Wrong!

We will be creating code using an “old-school” approach that does not rely on fancy development systems. We will pay a lot of attention to how you set up a project, create the code and documentation, process and test your code, and publish your code on a public server for others to see.

Why Not use an IDE?

IDE (Integrated Development Environment) systems are certainly productivity boosters. Using one can speed up your coding, and help you manage your code. The real problem with using an IDE in school is simple to explain. When you finally join a development team and start working on a “real (big) project, that team will tell you what development tools you need to use. Your current favorite tools will not be usable now. Some companies invest a lot of money for tools that seriously help manage a big project. Some of those tools are amazing, and take a long time to master. You do need to be familiar with an IDE, and we will look at a popular one later in the course. For now, no IDE is allowed!

There is another problem with living in an IDE while learning. The IDE hides a lot of details about building your project from you. I once attended a school that almost lost its accreditation because no student interviewed (and several faculty members as well) could explain how a program is actually processed into something that can run on a real computer!

We will make sure you understand what is going on by making sure you can function as a developer with only the real development tools available. It may surprise you to learn that most IDE systems are just fancy wrappers around standard tools. The wrapper gives you a point-and-clink development world to live in. Behind the scenes, those standard development tools are running under control of the IDE.

Working on the “Command Line”

All operating systems support a user interface where the mouse is not to be used. There is no Graphical User Interface (GUI) here. Instead, you tell the OS what to do by typing in commands using your keyboard only. This kind of interface has been around almost as long as computers themselves, but is largely ignored by most computer users today. Still, as a developer, it is an important part of the programming landscape, especially when you start interacting with computers in that “cloud” thing we all hear about today.

Servers that you might need to control somewhere on the Internet rarely have a GUI interface. That kind of thing is way too expensive to support over a long network connection. Instead, we transmit short strings of characters to the remote machine, and it replies with another short set of characters. Hey! That is exactly how the Web works! Only here, we are telling an operating system what to do.

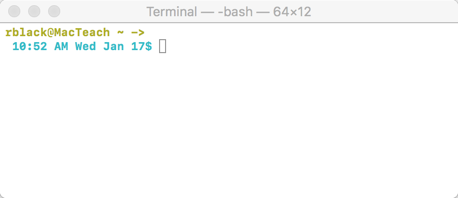

The interface we will use is called different things on different machines. On a PC, it goes by the name “Command Prompt”. On a Mac/Linux machine it is called a “Shell”. In either case, there will be a line on your screen with some kind of ‘prompt’, and that prompt it telling you to type in a command of some sort.

Commands are a series of space-separated chunks of text beginning with the name of a program you want the operating system to run. All the chunks after that program name are considered “options” that will be interpreted by the named program. Those options control exactly what the named program does when it runs.

When you press the “Enter” key at the end of the line, the operating system searches for the named program in a set of directories (folders for you PC folks). If it finds the program, it launches it and hands it those options on the command line. If the OS cannot find the program (because you mistyped its name, or that program is not installed so it can be found) you get an error message, and another prompt.

If the program is found and launched, what you see on the screen will be output from that program, possibly with error messages from the OS. When the program finishes running, you get another prompt.

The System PATH

Exactly where the OS searches for programs you name is controlled by something called an environment variable. There are many such variables in a table maintained by the OS. The variable used to locate programs is called the PATH variable. This is just a long string listing all of the directories where programs are installed. There is a separator character between each directory name: A colon character on the PC, and a semicolon on Linux/Mac machines.

You can modify this PATH variable if needed, something we will do as we install our development tools later.

Let’s try out this new interface!

Command Prompt on PC

Note

Since most students are showing up with laptops running WIndows 10, we will use that system for this example. For older versions of WIndows, the way you launch the “command Prompt” tool is slightly different. See me for help.

Open up the Command Prompt window on a PC by typing “cmd” (no quotes) in the search box at the lower left corner of your screen.

You should see something like this:

Managing Tools Directly

Rather than live in that point-and-click world, we will work on the system’s command line. Some of you have never seen this side of your computer, but it is important that you know how to work in this strange environment. Working on remote systems is a big part of the development world these days. Often the interface to those systems does not provide a fancy graphical interface, just that plain text-only command line.

Being able to log in on a remote system, write some code and run commands there is something you just need to know how to do. So you will be learning that way of working in this class.

Don’t worry, things will be simple enough, after you learn the basics!

Let’s get started by crafting the industry-standard first C++ program: “Hello, World!”

Fundamental Build Tools

Before we can get very far, we need to make sure we have a few basic tools available.

Programmer’s Editor

The first tool we need to master is a simple editing tool. We could (but won’t) fire up something simple like Notepad on a PC and type our code. The problem with that idea is that Notepad knows nothing about programming, and we want a tool professionals will be comfortable with. Now,

Warning

This is a topic sure to start “flame wars”. And, yes, I know about Notepad++. I choose to use one I consider much better! YMMV!

Most programmers have one editor they will use and defend forever. There are many to choose from, but I have always favored a tool that can be run on just about any platform you will ever touch in your career. For me that editor is some version of Vim. I have used this editing tool on $35 Raspberry Pi computers and on $8 million Cray super-computers! It ranks near the top of any list of favorite developer’s editors. We will use Vim in this class.

Note

Even if you end up choosing another editor, you owe it to yourself to know the basics of using Vim, since it is commonly installed on many systems (just not on Windows, but that is easily fixed!)

Installing gVim

Installing gVim (or most tools you will want) in Ubuntu Linusx is pretty simple:

$ sudo apt-get install -y vim-gtk

Note

You will be asked for your password when you run any command thta starts with sudo. sudo stands for “super-user do”. This elevated your permission level to the all-powerful “root” user who can do just about anything in Linux. This level of control can get you in trouble, so most Linux users limit the time that use this power. Basically, we ned this power to install files in areas of the file system off-limits to normal users.

We can check that Vim is installed by opening up a command-prompt window and typing a simple command:

C:\User\rblack> gvim --version

If gVim is installed, you should see something telling you what version you are running.

Program Build Tools

We need another set of tools to process progran code files. All of the additional tools needed for this purpose are packages in a simple package we install as follows:

$ sudo apt-get install -y build-essential

After running this command, we cna check that the tools we really need are installed:

C++ Compiler

After you edit a C++ program, and same the code file on your system, we need to process that file using a suitable C++ compiler. There are many such compilers available. We will use a version of the Gnu C++ Compiler, which is industry-strength, free, and available on all machines.

We can check that the compiler is ready for action as follows:

$ g++ --version

Make

We could manage the building process manually, and we will do that for our first examples. However, typing in long strange looking commands on the command line gets old pretty quickly. For that reason, we will use a tool that has been a part of programming for a long time. That tool is called Make. Basically, we will set up a simple control file for Make and let it do all of the work

Let’s check that Make is installed:

$ make --version

Git

This last tool is one most of you have never heard of. It is one of the most important tools you will learn in this course. Git was developed by Linus Torvalds, the creator of the Linux Kernel, to help him manage the over 1000 programmer’s who help manage this huge pile of code. Since Linus published Git it has “gone viral”, and is now used daily by millions of programmers.

Git manages the history of your project. We will be discussing how it works, and why you need to use it later in the course. For now, let’s get it installed:

$ sudo apt-get install -y git

And we check it as usual:

$ git --version


If you get this far you are ready to write some code in thsi new world
called Linux.
