Read time: 52 minutes (13212 words)

Storage Technologies

All computer systems need access to storage areas to hold instructions and data for processing. We also need external storage to hold files that persist beyond the run on your program. In this seciton, we will look at the variety of technologies we use for this storage.

We start off by taking a historical look at the various devices we have constructed to store bits. This is a fascinating area of research and development, and over the years we have seen a variety of gadgets appear that could hold a simple zero or one.

The earliest idea for storing bits was a simple hole in a chunk of wood. The Jacquard Loom was one of the first devices to use such a scheme to control the operation of a weaving machine

../../_images/JacquardLoom.png

This evolved into the Hollerith punched card that I used to write programs when I first learned about computers in the late 1960’s:

../../_images/Hollerith.png

As technology marched on, we figured out how to use magnetism to store bits. The first memory devices based on this was called “core memory”:

../../_images/core.png

This was pretty clumsy to build and the density was bad, so we moved on to drum memory:

../../_images/drum.png

Finally, we moved to rotating disks that looked like this:

../../_images/platters.png

Internally, we moved to solid state memory devices with the introduction of the transistor, and later the integrated circuit:

../../_images/static_ram.png

And eventually, we ended up with these kinds of cards:

../../_images/dram.png

It has been quite a ride! And this review only touches part of the spectrum of storage devises folks have developed (what did we miss> You should be able to come up with a dozen more!)

Random-Access Memory

We have discussed the general hierarchy of storage locations in an earlier lecture, and you know that the further you are from the internals of the processor, the more time it takes to get at out data and instructions. The most important kinds of memory devices in our systems are what we call “main memory”, which is the kind of memory you want to add as much of as possible.

This memory is addressable using a set of address lines that are connected to the device. The contents of the memory may be accessed by one or more data lines, and the access is controlled by (you guessed it) control lines.

Memory devices come in all shapes and sizes. Some store single bits, others more than one bit. Generally, manufacturers today combine a munber of devices to build a general memory module like we saw earlier.

Today, memory devices come in two basic technologies:

Static Ram

The first kind of memory chip developed was a device that was constructed of electronic circuits called “flip-flops”. These devices could be set into one of two different states using a control line and would stay in that state until something caused the state to change. This kind of device is called bi-stable and is quite common in the electronics world!

Such devices are pretty complex, and expensive to produce, so they are not used for most of the memory in a system. However, they are fast, and used in places like cache memory devices.

Dynamic Ram

Another technology surfaced in an attempt to simplify the memory chip, and lower the cost of production. The “dynamic memory” device is based on a set of simple capacitors, one per bit. These capacitors can be charged or discharged as needed to record the state of the selected bit

Left alone, a charge in a capacitor will leak out, and these memory devices have a special refresh line that essentially recharges those capacitors that currently have a charge. Reading and writing these chips involves selecting the address of the capacitor and either charging, or discharging the capacitor. Simple idea, and it has worked very well!

Memory Modules

Dynamic ram chips are typically constructed in a rectangular array of cells, some number of rows and columns. Once again, a number of these chips will typically be installed in a memory module to plug into a computer. These modules can deliver data in 64 bit chunks, and more are possible.

Inside the computer, a special memory controller helps keep the refresh and access timing needs of the memory in order.

DRAM chips are very inexpensive, and today comprise the vast majority of memory devices installed in computer systems. How much do you have (or how much can you afford?)

There are a number of different DRAM technologies available, and more are being developed all the time. Each of these modules tries to balance the needs of the latest processors, with the cost issues so we can get the systems we want to meet our needs.

Non-Volatile RAM

Both the static and dynamic ram chips we have discussed suffer from one serious flaw - they get forgetful if the power goes away. This is a big problem. We need some kind of memory that can hold the program the processor will run when it first powers up, one that does not forget its contents when no power is available.

Read Only Memory (ROM)

The earliest versions of such memory chips were called “read-only memory” since they were programmed at manufacture time and the contents could never be changed. These were useful once a program was debugged, but it was a pain to use during development.

Programmable-Read-only memory (PROM)

It became obvious that designers needed a way to build systems and put their own code into the ROM chips, so devices that could be field-programmed (once) were developed. These were called “Programable Read-Only Memories.

Erasable ROM Memories

A later development added a quartz crystal window into the internals of the chip. When an ultraviolet light was shine dinto the window for long enough, the state of the internal bit stores could be erased, then reprogrammed. It was painful, but effective. And now system designers could debug their systems and system softweare in a more reasonable way.

Flash Memories

The latest development in these memory devises is the “flash memory chip” which can be programmed by a fairly simple electronic system. These devices have taken over the consumer market - giving us the digital camera market as an example. Not to mention MP3 players.

The data pathway

Once we add memory to our systems, we need to add a set of lines over which the bits can travel to and from the processor. The lines are called buses and are usually as wide as possible to move more information in one operation.

The timing of access to the bus allows for more than one device to use the bus as needed. The processor will perform a read or write and then go into an internal processing state where the bus is unused. During these times, other devices in the system can more data over the buses. One common use of this tactic is to let the disk controller move data from the disk to main memory in the background, while the processor is not using the bus. Once the transfer is complete, the processor will be signaled by the disk controller that the data is available. The graphics card can do similar tricks to move blocks of memory from the main memory to the graphics memory for its internal crunching needs.

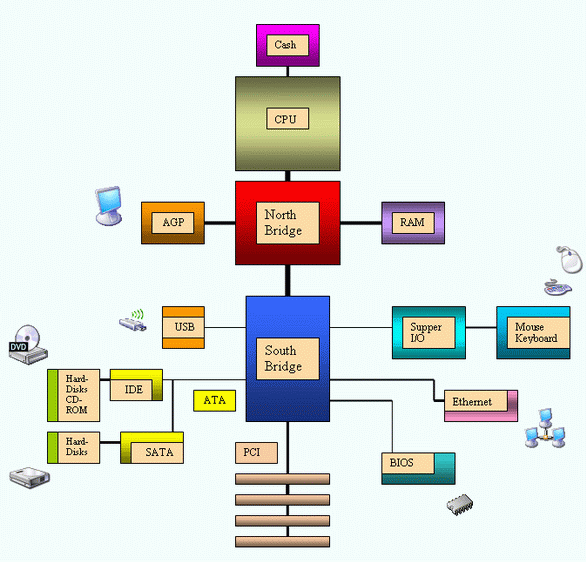

There are a number of devices on a typical system motherboard that handle these transfers. In the PC we have two devices, called the northbridge for hihg speed transfers between the processor and main memory or the graphics system, and the southbridge for slower transfers (like to and from external devices like disks). Here is a diagram that shows the various devices and data paths available:

../../_images/motherboard.png

Disk Storage

We can never have enough main memory to suit our computing needs. And, once the power goes away, we need a place to store our programs and data so we can compute another day. Modern disk drives use the rotating platter technology we saw earlier. Such devices have become huge - holding terabytes of data and spinning at high speeds so we can get at our data!

Disk Geometry

A modern hard disk is a physical device with a number of platters each side of which has magnetic media available for reading and writing. The platter is arranges as a series of concentric tracks each divided up into a number of sectors per track. Each sector can hold a fixed number of bytes. It looks something like this:

../../_images/disk_geometry.png

Disk manufacturers continually seek ways to increase the density of nit storage on these devices. They work on technoligies that increase the number of bits per inch that can be recorded, and seek ways to decrease the distance between tracks. It is pretty amazing to note that they can build disk drives as tiny as this:

../../_images/thumb_disk.png

Obviously, most are larger, but it is amazing to see how they build these things!

../../_images/disk_internals.png

Disk Capacity

The capacity of a disk drive is a function of the number of platters, the number of tracks, and the bit density of each track. The higher capacity drives pack a lot of platters and space the tracks very closely - these are precise devices. We can come up with a simple formula to calculate capacity as follows:

Most sectors hold 512 bytes of data, so, the formula we need is:

  • capacity = platters * 2 * tracks * sectors * sector_size

Logical Disk Blocks

A cluster is a grouping of usually 8 sectors. The physical disk has management data stored in the spaces between sectors to help the hardware access the data areas. Most of the time, we do not worry about all of this.

In fact, many manufacturers hide the physical layout of the disk using processing hardware like we will explore later in the course (microcontrollers), and present a logical layout that can be expressed with a simple number of sectors. This is called Logical Block Access (LBA). Modern Bios software knows about all of this.

Disk Operation

Disk drives are managed by disk controllers, usually located on the motherboards. Increasingly, they are also supported by intelligence on the drives themselves! The processor (actually, the operating system) sends commands to the controller to start the drive spinning (it might be powered down to save energy or batteries), and to seek to a specific track and sector. The drive will them be commanded to either read or write as needed to a number of sectors. The time delay before we can read or write is called the dick access time.

Most modern drives have buffers on-board where data destined for writing, or where data from the drive can be staged for reading by the drive itself. Then the commands will simple move data to and from these buffers using the background bus transfers we mentioned earlier.

Disk drives are rotating machines. So, among the considerations we need to deal with is how fast we can reach any given sector on the disk. This is a combination of rotational speed, and the speed of movement of the read/write haeds as they move from track to track. Obviously, accessing sectors sequentially on a single track is a good thing to do, as is accessing tracks that are close together.

However, we depend on the operating system to lay out where our data and programs will live, and you all know that things can get out of control if we are not careful. Defragmenting a disk is an operation that seeks to maximize access speed by reorganizing data more efficiently.

If we cannot read the data we need fast enough, we might need to wait for the drive to spin around another time, or wait while we reposition the read/write heads to access the next sector we need. All of these delays impact the speed of data transfer. Fortunately, as normal programmers, we have little control over these things - unless you are writing an operating system!

Originally, the commands sent to a disk included details about where a sector was located - including the platter number, side, track number and sector number. The Logical Data Block idea removed that complexity and replaced it with a simple integer number we wish to access. The on-board drive electronics takes care of figuring out where that block is located.

Solid State Disks

Recent developments in drive technologies are producing disk devices with no moving parts. We have been moving in this direction as flash drive capacities increase. The advantage of such devices in portable applications and in reliability should be obvious. With no moving parts to wear out, or to be damages by shocks to the device, we get a more stable device. Unfortunately, the speed of these devices is not that great, nor is the capacity that high. But improvements are being made all the time, and we now see commercial devices with solid state drives on the market.
